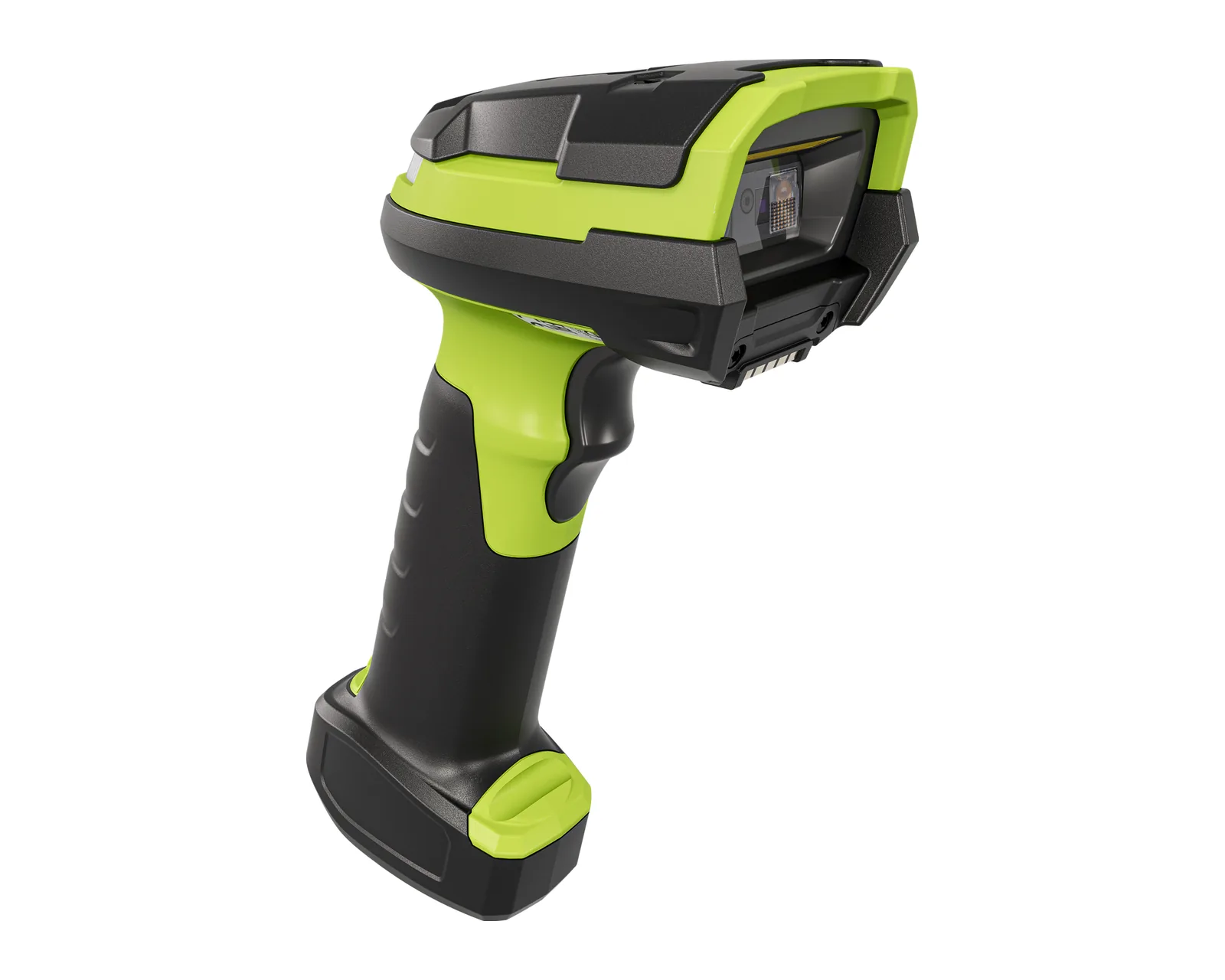

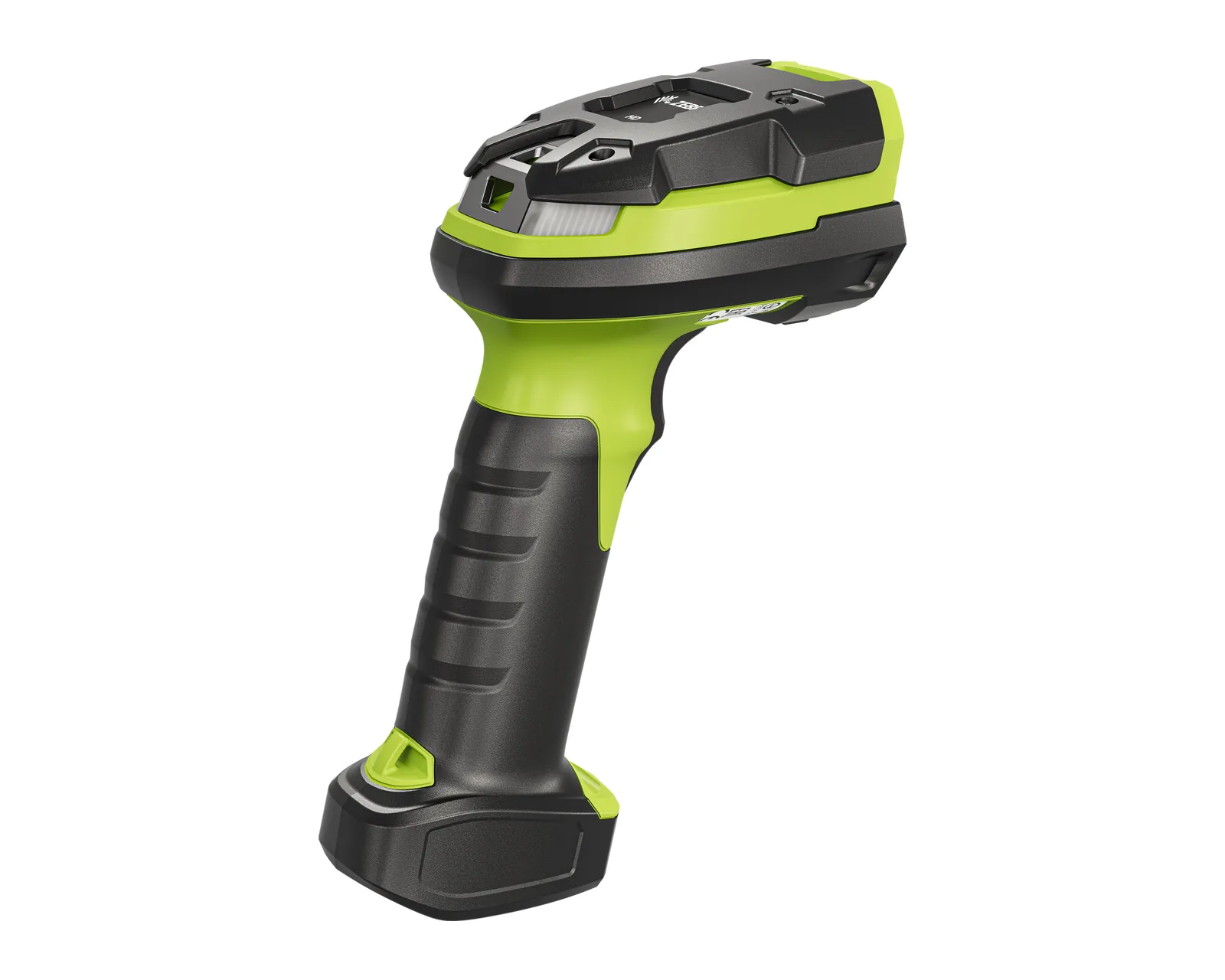

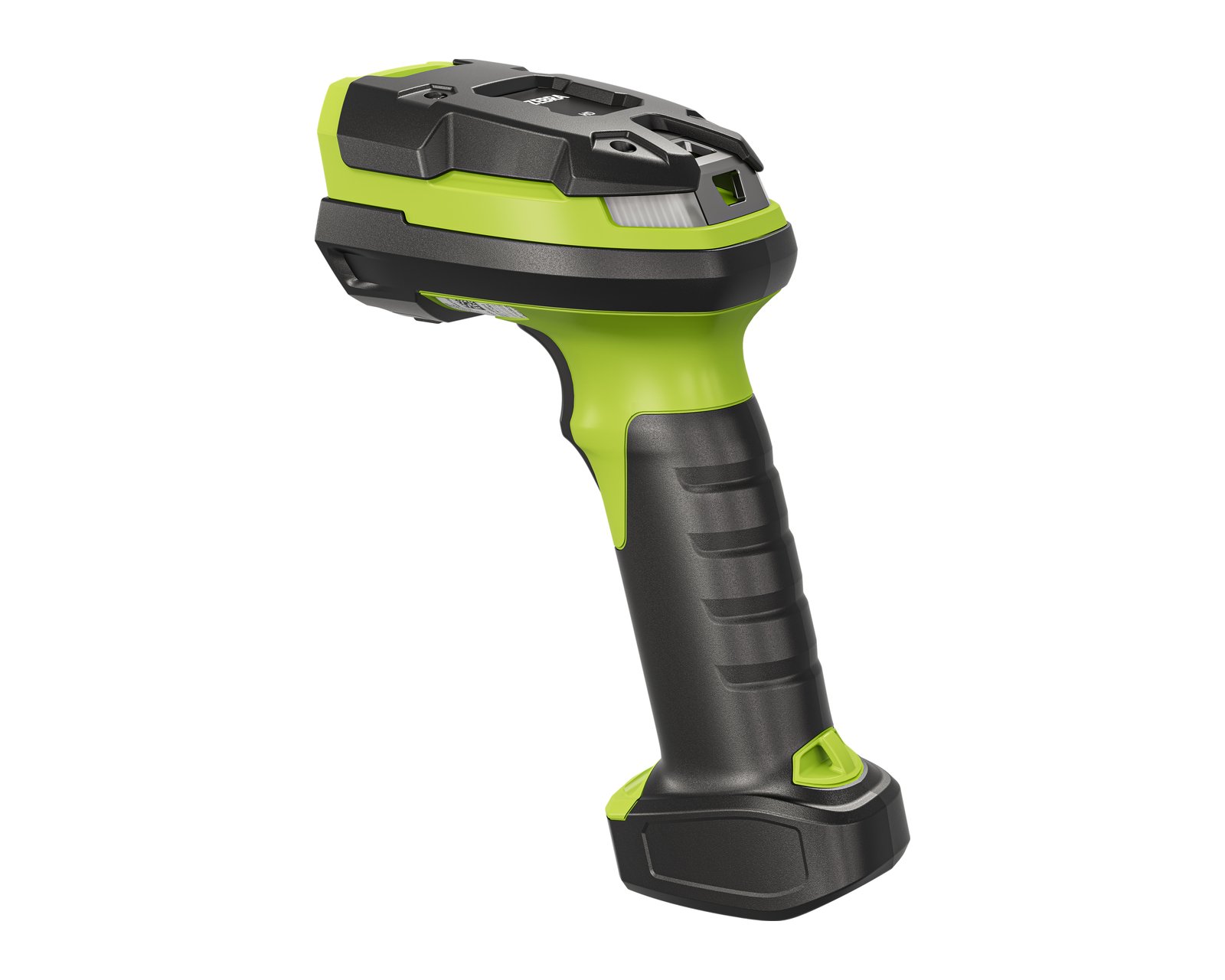

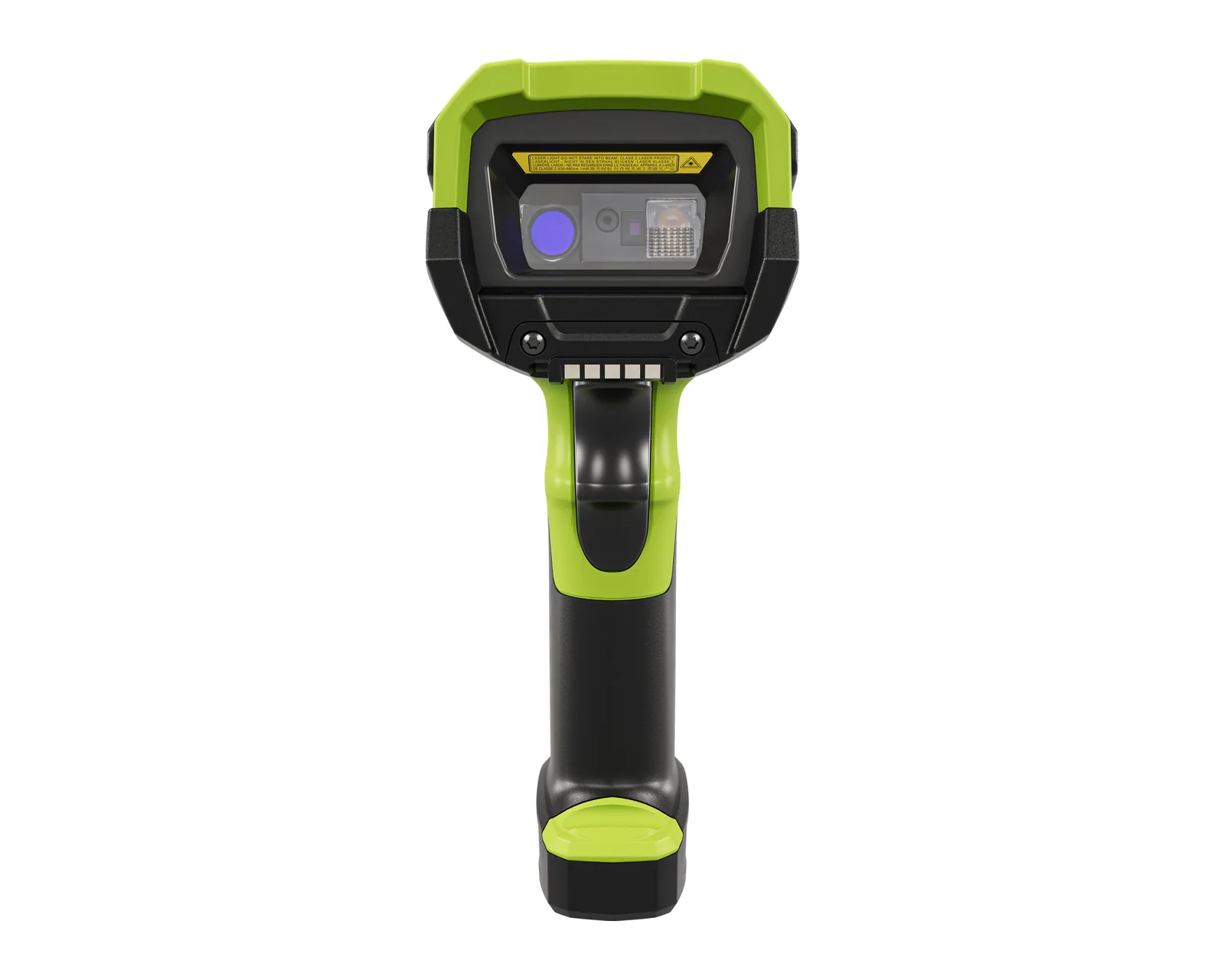

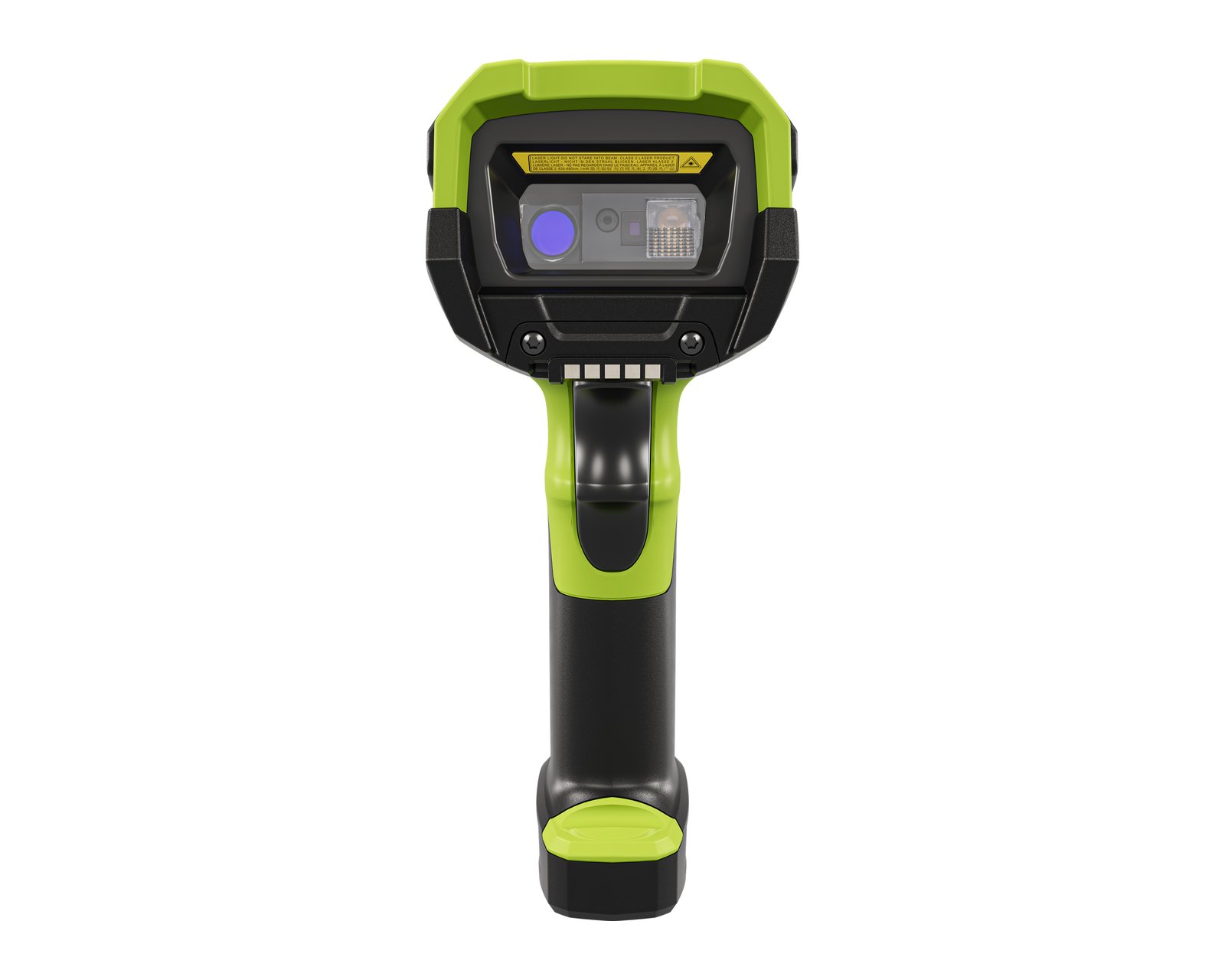

Zebra DS3678

Ultra-rugged cordless Bluetooth scanner with a 3100 mAh battery for warehouses and cold storage

Scanning technology2D
ConnectionWireless
IP ratingIP65 / IP68

Model: DS3678
Brand: Zebra

Zebra DS3678 is a family of ultra-rugged cordless 2D scanners with Bluetooth Class 1 and a 3100 mAh battery. For warehouses, manufacturing and cold storage; SR, ER, HD, XR and DPM variants, IP65/IP68.

On order

Delivered within one week of payment.

from 11 690 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresSpec sheet SR (RU) RU Spec sheet SR (EN) EN Spec sheet XR (RU) RU Spec sheet XR (EN) EN Spec sheet DP (RU) RU Spec sheet DP (EN) EN Spec sheet DPA (RU) RU Spec sheet DPA (EN) EN Spec sheet ER (EN) EN Spec sheet HD (RU) RU

01Description

Zebra DS3678 is a family of ultra-rugged cordless 2D barcode scanners with Bluetooth. It targets warehouses, manufacturing and logistics.

Key features

2D imager, 1280x800 px sensor (SR) or 1920x1080 px long-distance sensor (XR)
SR, ER, HD, XR, DP, DPA and HP variants; DP/DPA/HP are for DPM codes
SR: Code 128 20 mil from 7.1 to 71.1 cm; XR: UPC 13 mil from 3.3 cm to 3.7 m
Bluetooth Class 1 v4.0 LE; cradle with USB or industrial Ethernet
PowerPrecision+ Li-Ion battery of 3100 mAh, 100,000+ scans (SR)
IP65 and IP68 protection, 3.0 m drop rating, -20...50 °C

Where it fits

Used in warehouses, manufacturing, logistics and retail, including cold storage. Pick the variant by reading distance and code type, DPM included.

Request a quote for Zebra DS3678.

02Specifications

Barcode capture

Scanning technology	2D
Scan engine	2D imager, 1280x800 px (SR); 1920x1080 px long-distance sensor (XR)
Reading range	SR: Code 128 20 mil 7.1-71.1 cm; XR: UPC 13 mil 3.3 cm-3.7 m
DPM (direct part marking)	✓

Connectivity

Connection	Wireless
Interfaces	USB (cradle), Bluetooth Class 1 v4.0 LE, Industrial Ethernet (cradle)

Durability and power

Healthcare (HC): disinfectant-ready housing	—
IP rating	IP65 / IP68
Drop resistance	3.0 m (housing, room temperature); 2.4 m at -20...50 °C
Operating temperature	-20...50 °C (cordless)
Battery	PowerPrecision+ Li-Ion 3100 mAh; 100,000+ scans (SR)
Weight	407 g (SR)
