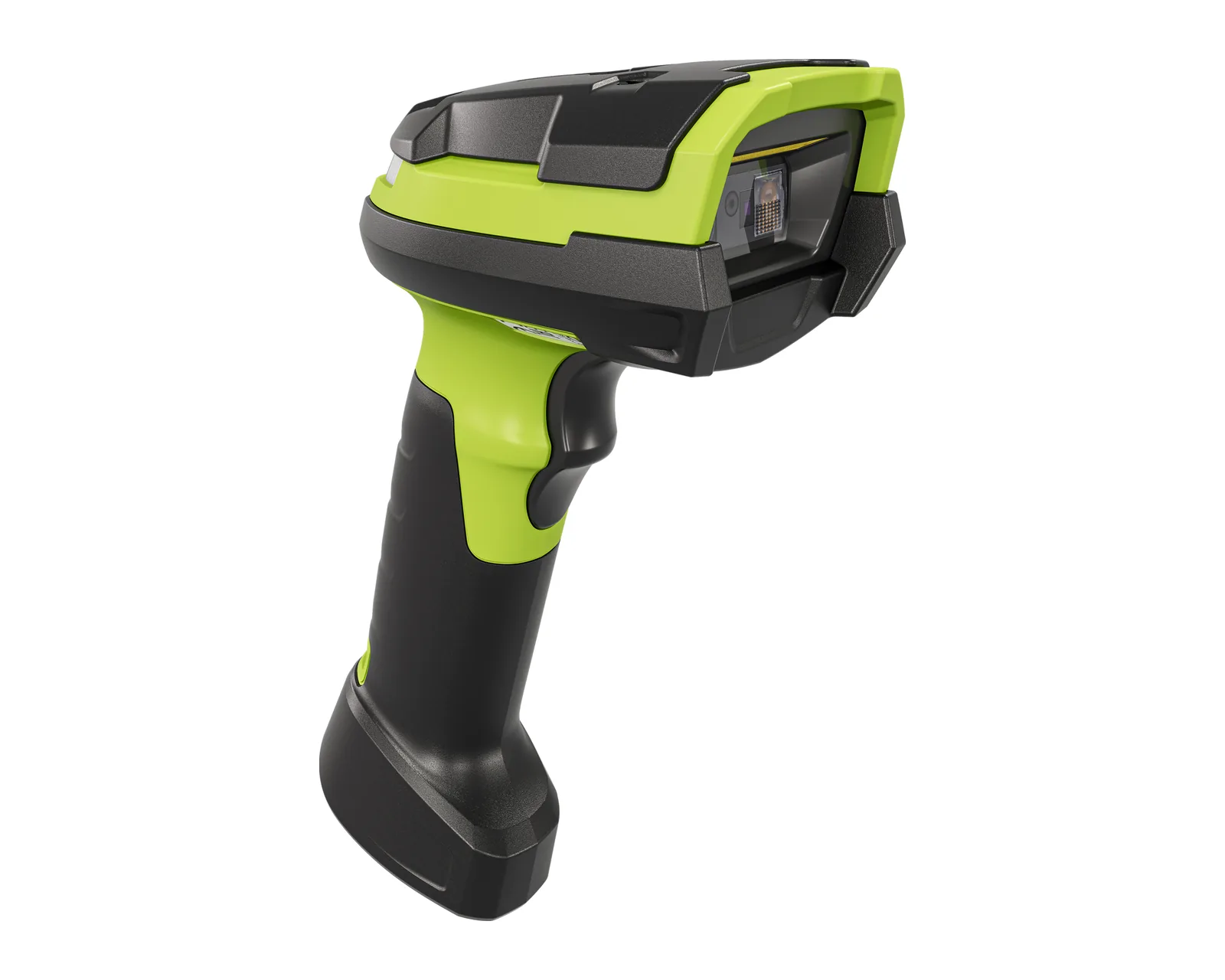

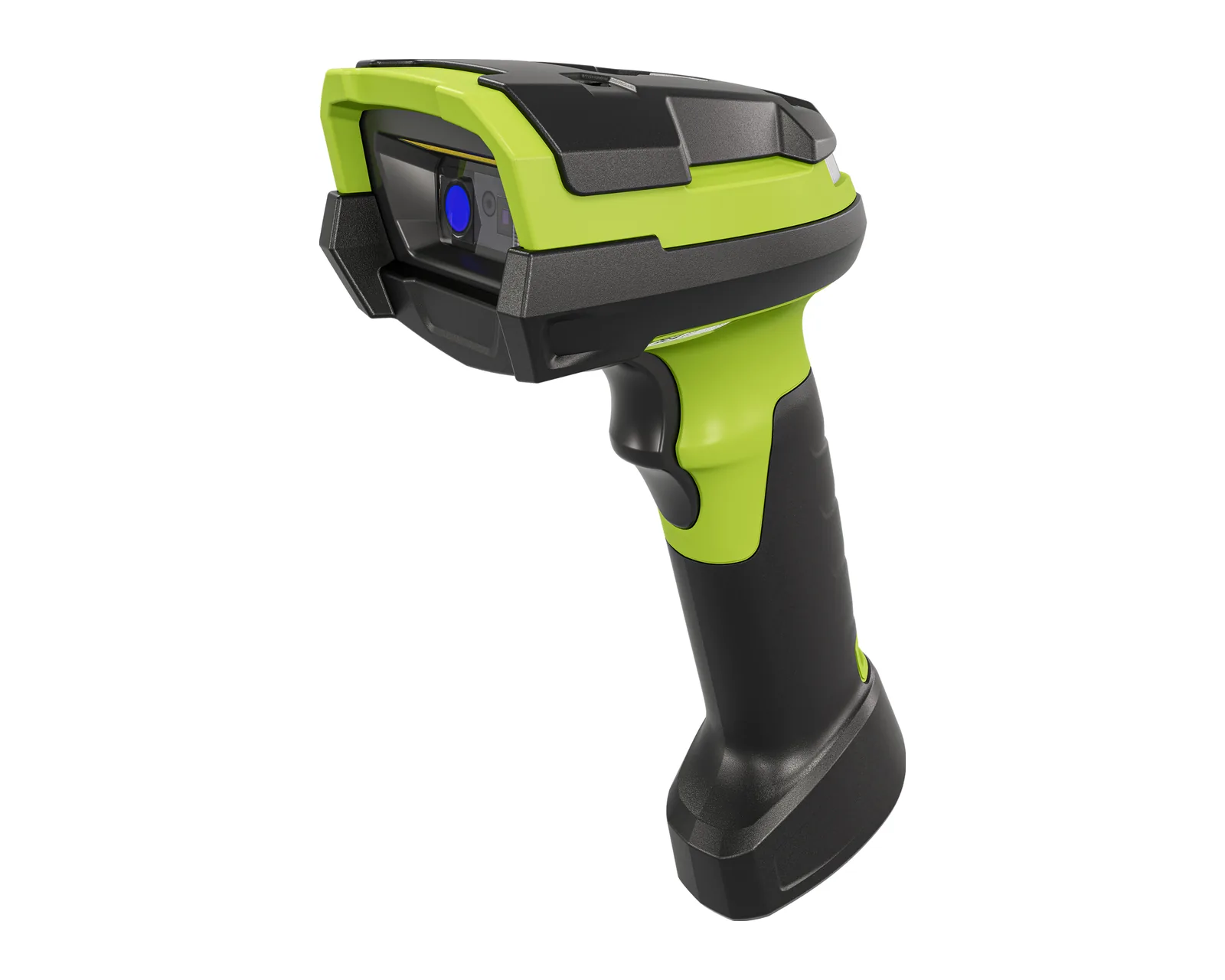

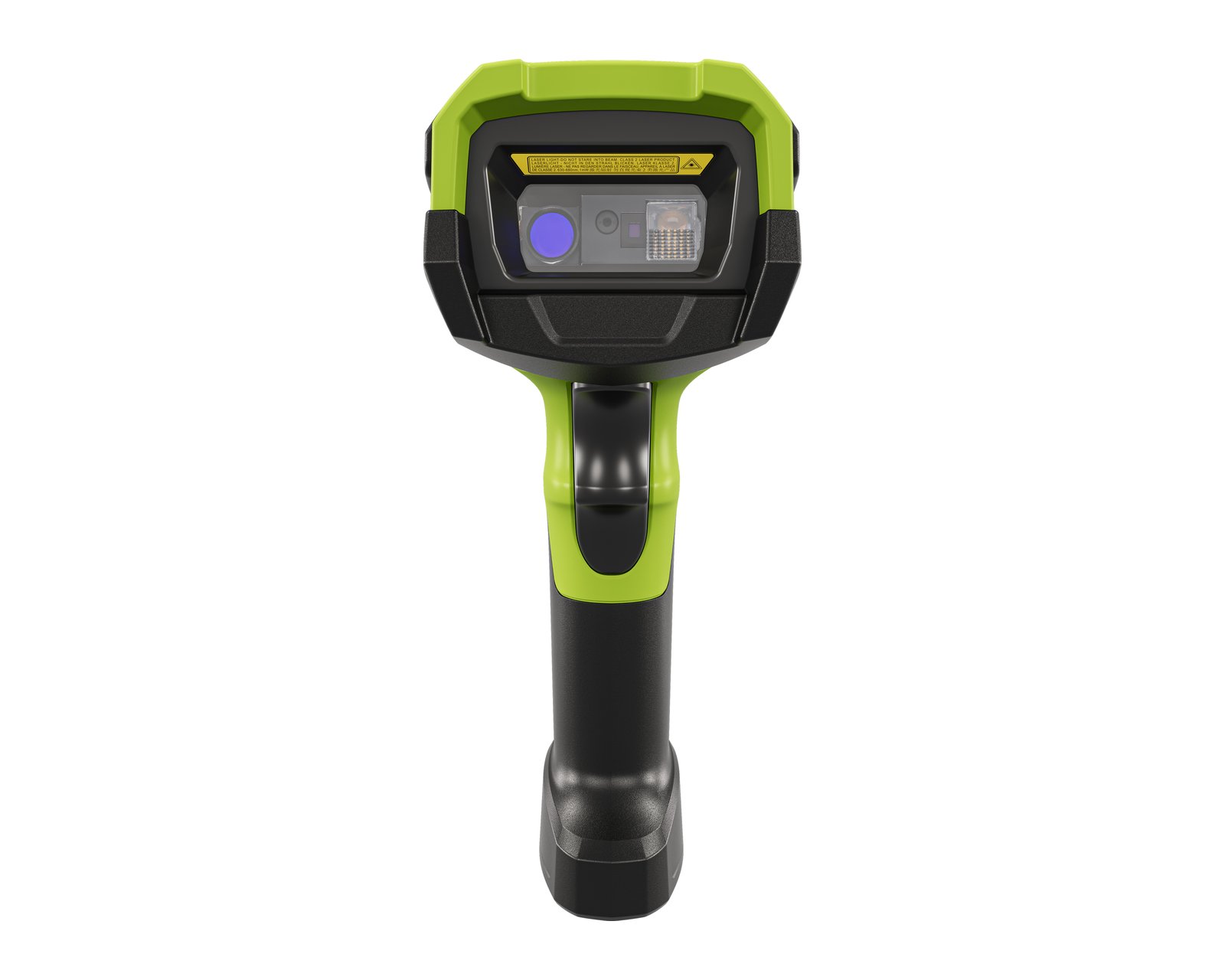

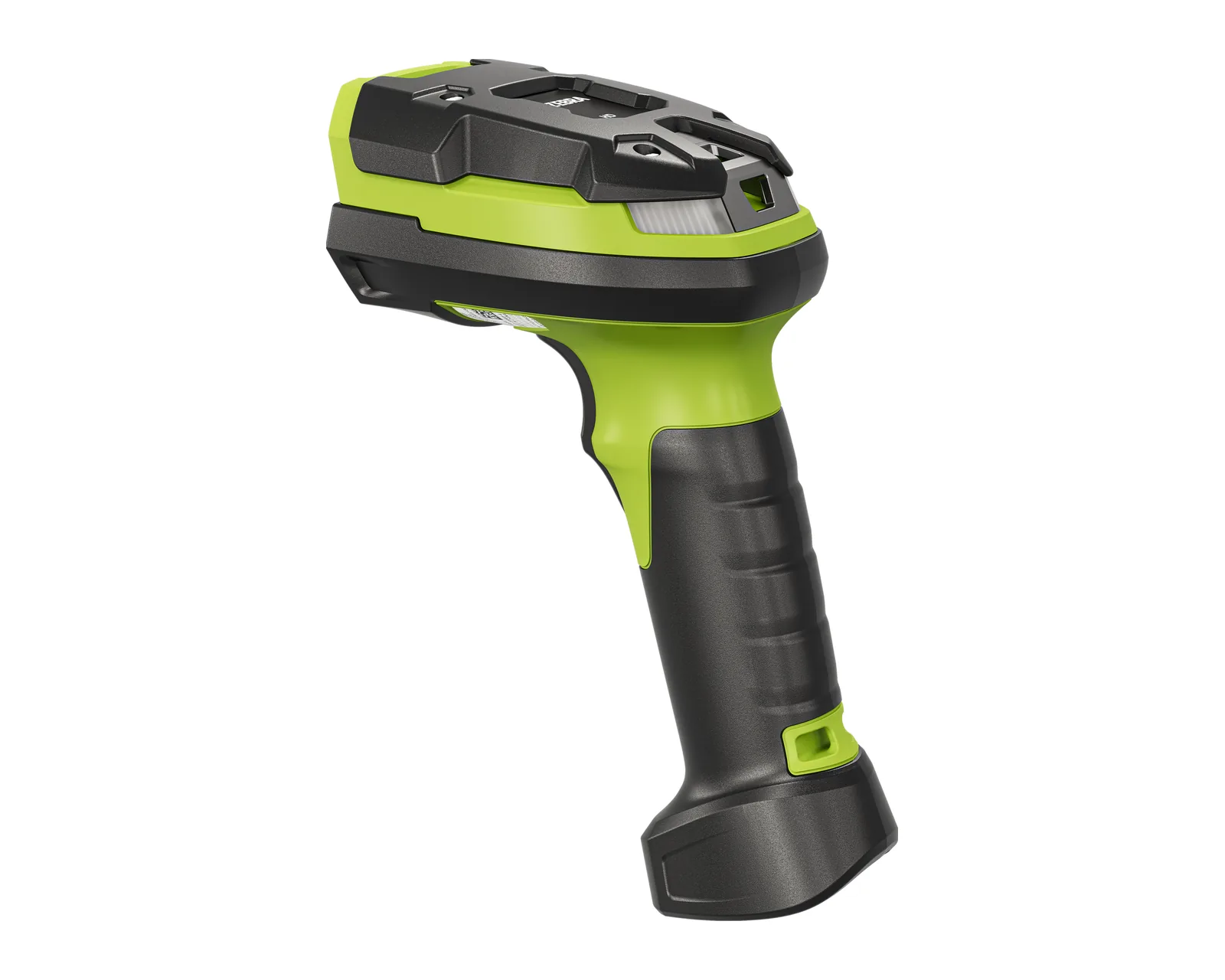

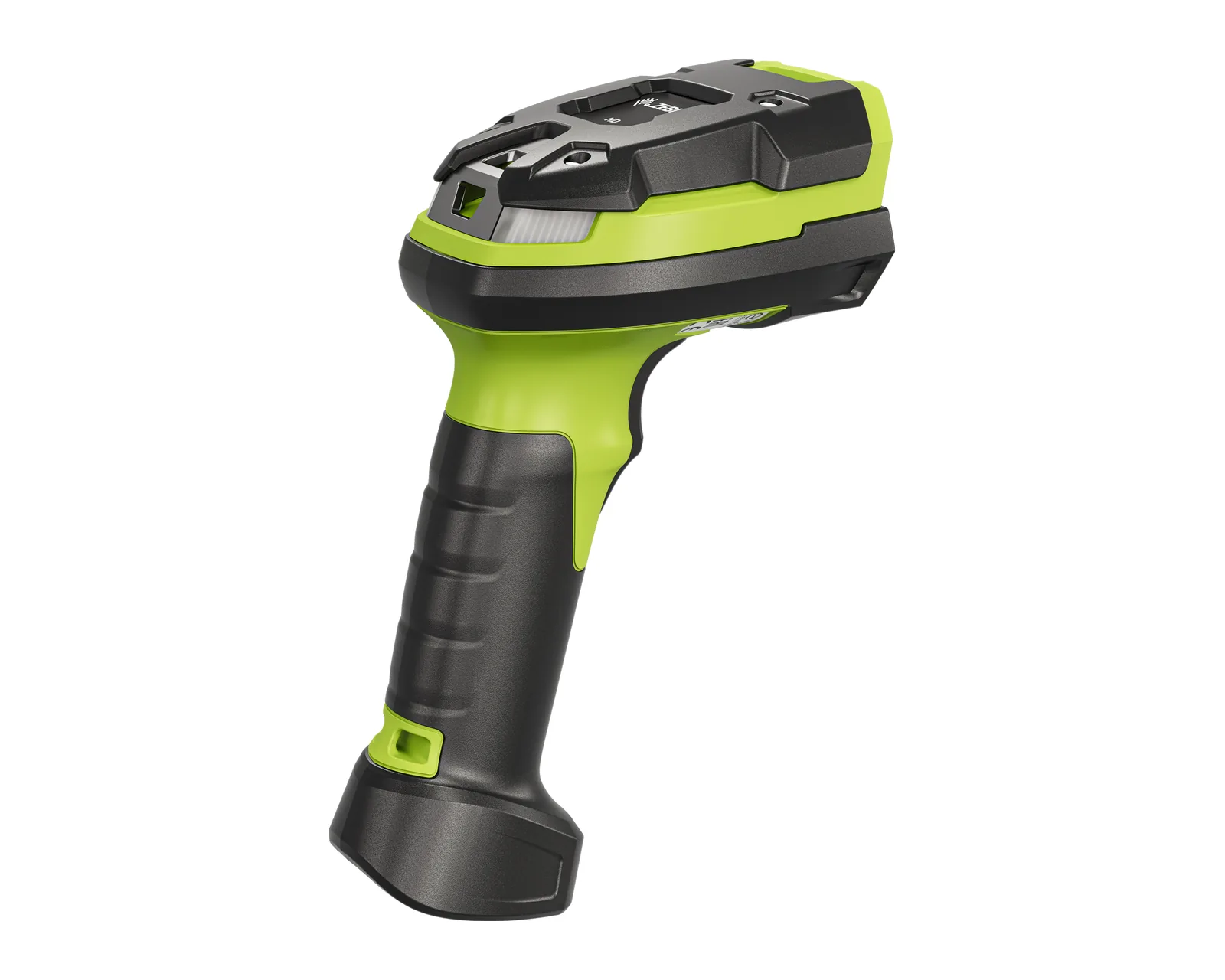

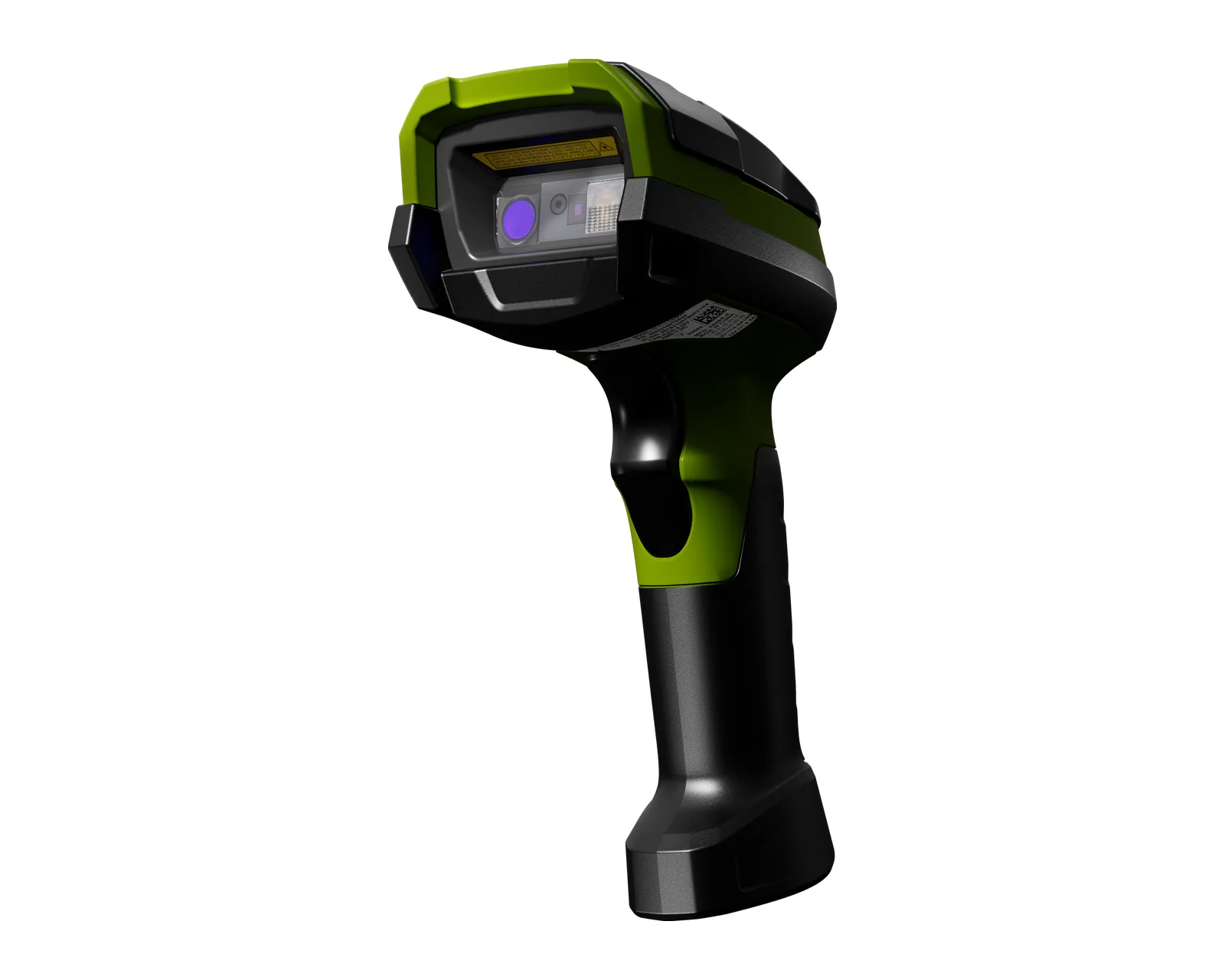

Zebra DS3608 - 1
  • Zebra DS3608 - 1
  • Zebra DS3608 - 2
  • Zebra DS3608 - 3
  • Zebra DS3608 - 4
  • Zebra DS3608 - 5
  • Zebra DS3608 - 6

Zebra

Zebra DS3608

Ultra-rugged corded scanner for warehouses, manufacturing and cold storage, many variants

  • Scanning technology2D
  • ConnectionWired
  • IP ratingIP65 / IP68
Model
DS3608
Brand
Zebra

Zebra DS3608 is a family of ultra-rugged corded 2D scanners for warehouses, manufacturing and cold storage. Variants from standard range to DPM and extended range, IP65/IP68, USB, RS-232 and industrial Ethernet.

On order

Delivered within one week of payment.

from 7 100 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresSpec sheet SR (RU) RUSpec sheet SR (EN) ENSpec sheet XR (RU) RUSpec sheet XR (EN) ENSpec sheet DP (RU) RUSpec sheet DP (EN) ENSpec sheet DPA (RU) RUSpec sheet DPA (EN) ENSpec sheet ER (EN) ENSpec sheet HD (RU) RU

01Description

Zebra DS3608 is a family of ultra-rugged corded 2D barcode scanners with many variants. It targets warehouses, manufacturing and logistics.

Key features

  • 2D imager, 1280x800 px sensor (SR) or 1920x1080 px long-distance sensor (XR)
  • SR, ER, HD, XR, DP, DPA and HP variants; DP/DPA/HP are for DPM codes
  • SR: Code 128 20 mil from 7.1 to 71.1 cm; XR: UPC 13 mil from 3.3 cm to 3.7 m
  • USB, RS-232, keyboard wedge and industrial Ethernet (EtherNet/IP, Profinet, Modbus TCP)
  • IP65 and IP68 protection, 3.0 m drop rating
  • operating temperature -30...50 °C

Where it fits

Used in warehouses, manufacturing, logistics and retail, including cold storage. Pick the variant by reading distance and code type, DPM included.

Request a quote for Zebra DS3608.

02Specifications

Barcode capture

Scanning technology2D
Scan engine2D imager, 1280x800 px (SR); 1920x1080 px long-distance sensor (XR)
Reading rangeSR: Code 128 20 mil 7.1-71.1 cm; XR: UPC 13 mil 3.3 cm-3.7 m
DPM (direct part marking)✓

Connectivity

ConnectionWired
InterfacesUSB, RS-232, Keyboard wedge, Industrial Ethernet (EtherNet/IP, Profinet, Modbus TCP)

Durability and power

Healthcare (HC): disinfectant-ready housing—
IP ratingIP65 / IP68
Drop resistance3.0 m (housing, room temperature); 2.4 m at -30...50 °C
Operating temperature-30...50 °C (corded)
Weight305 g (SR)
