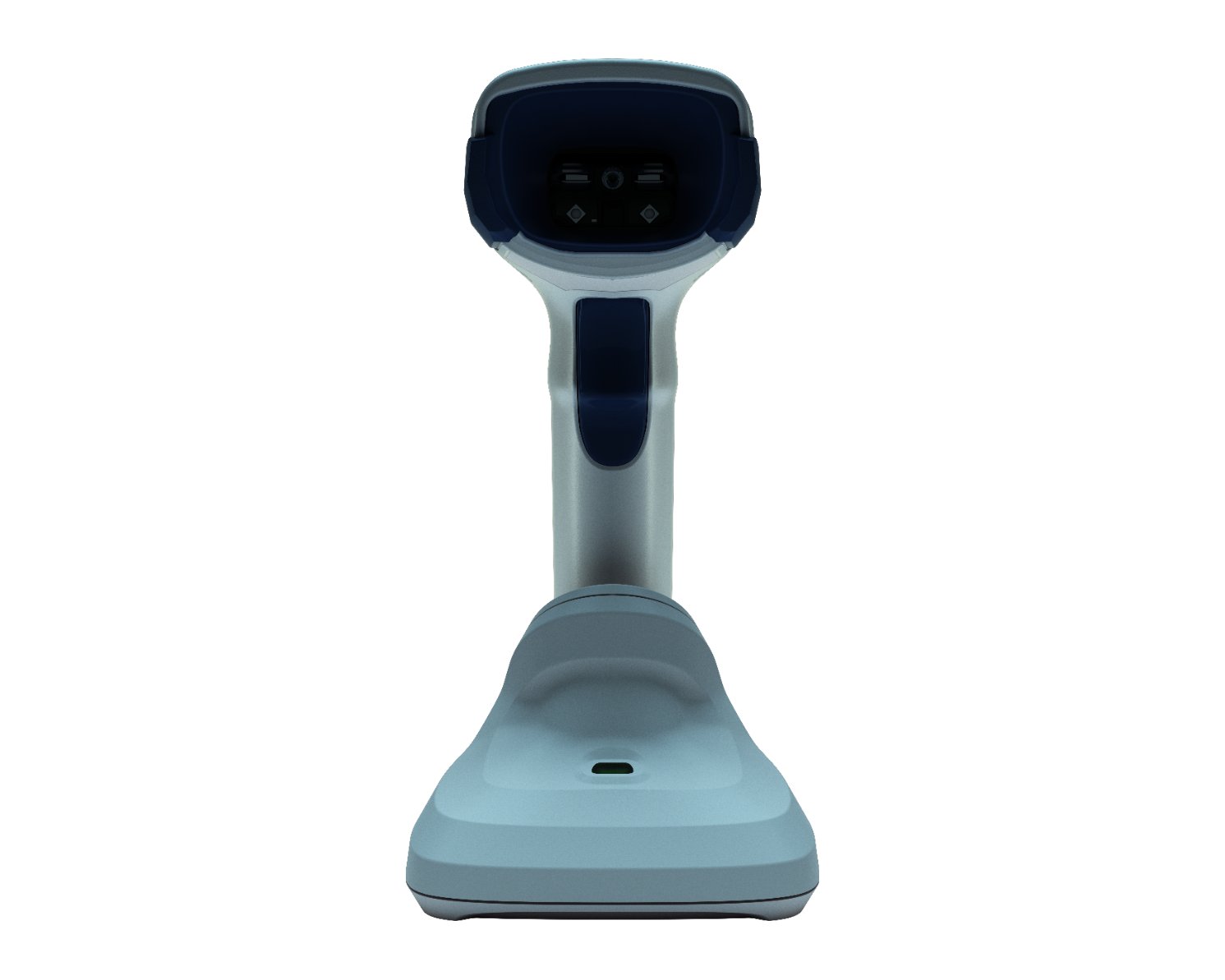

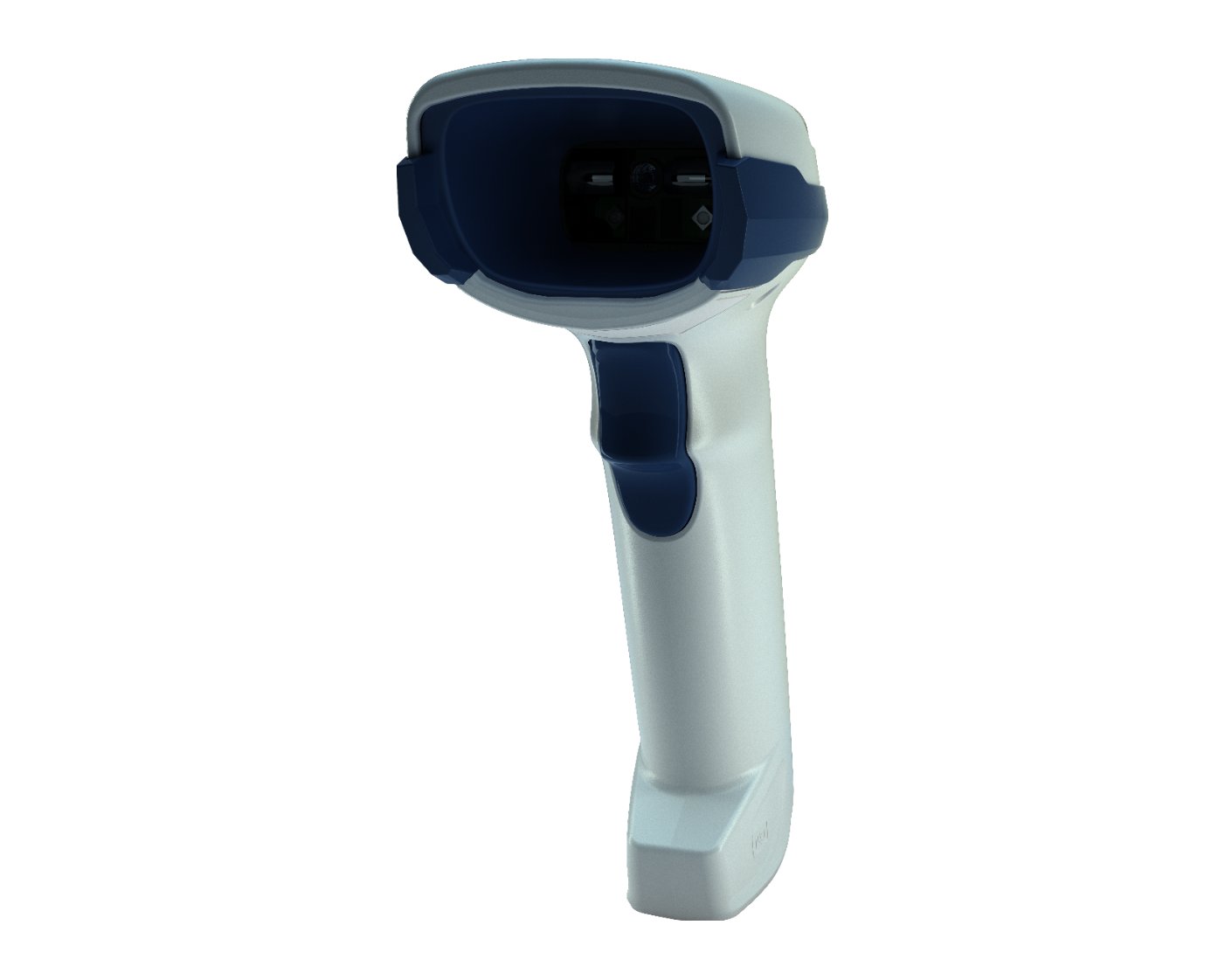

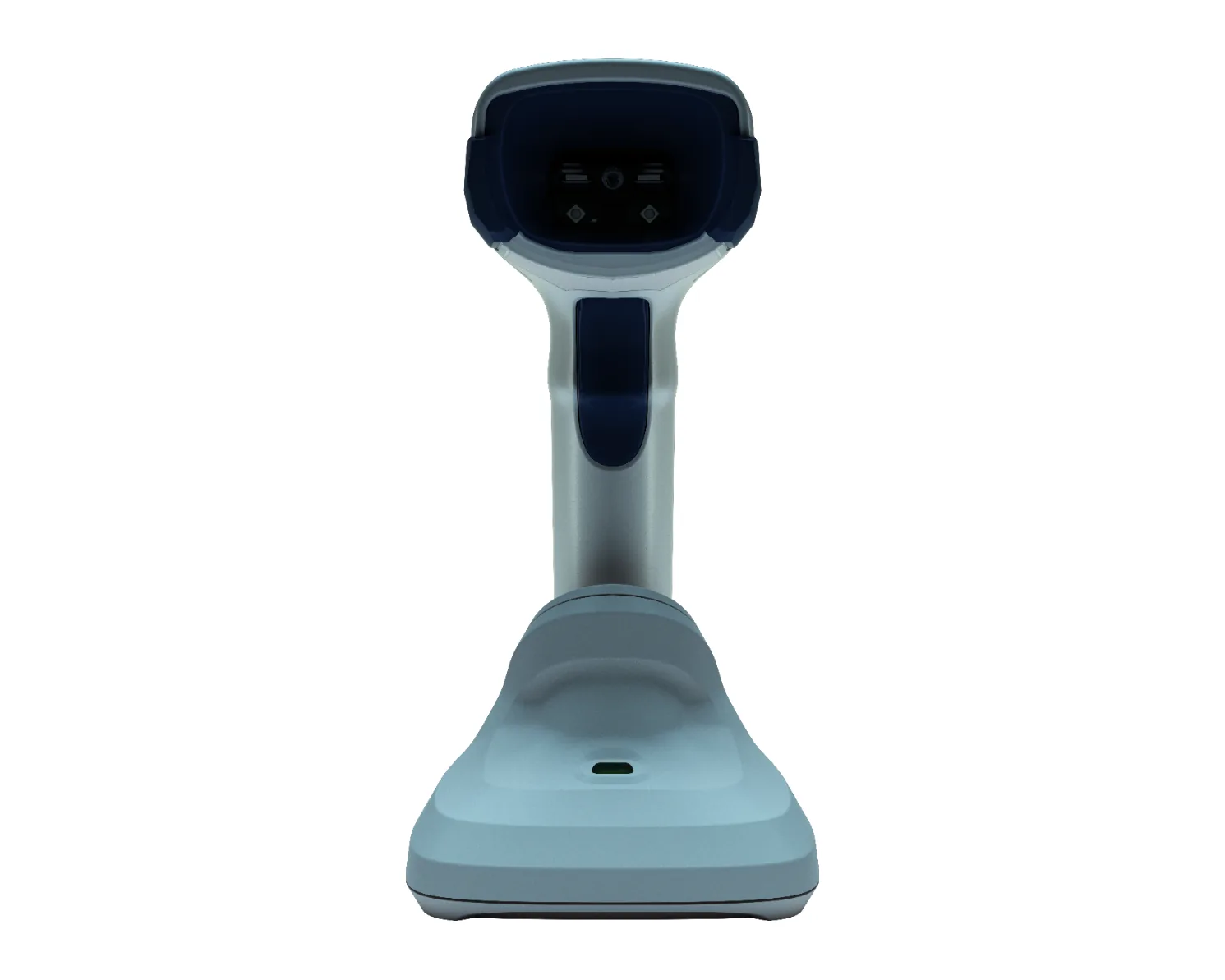

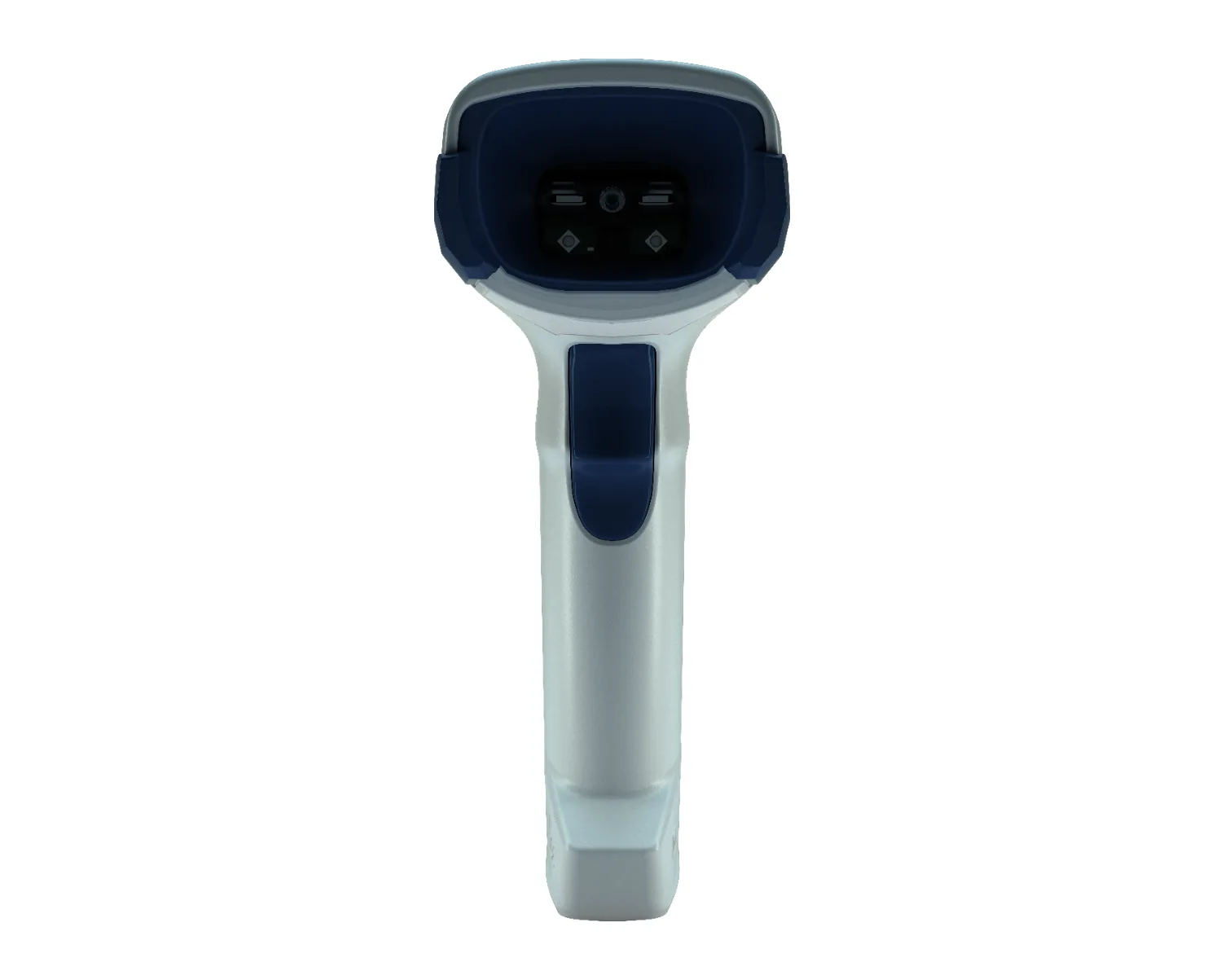

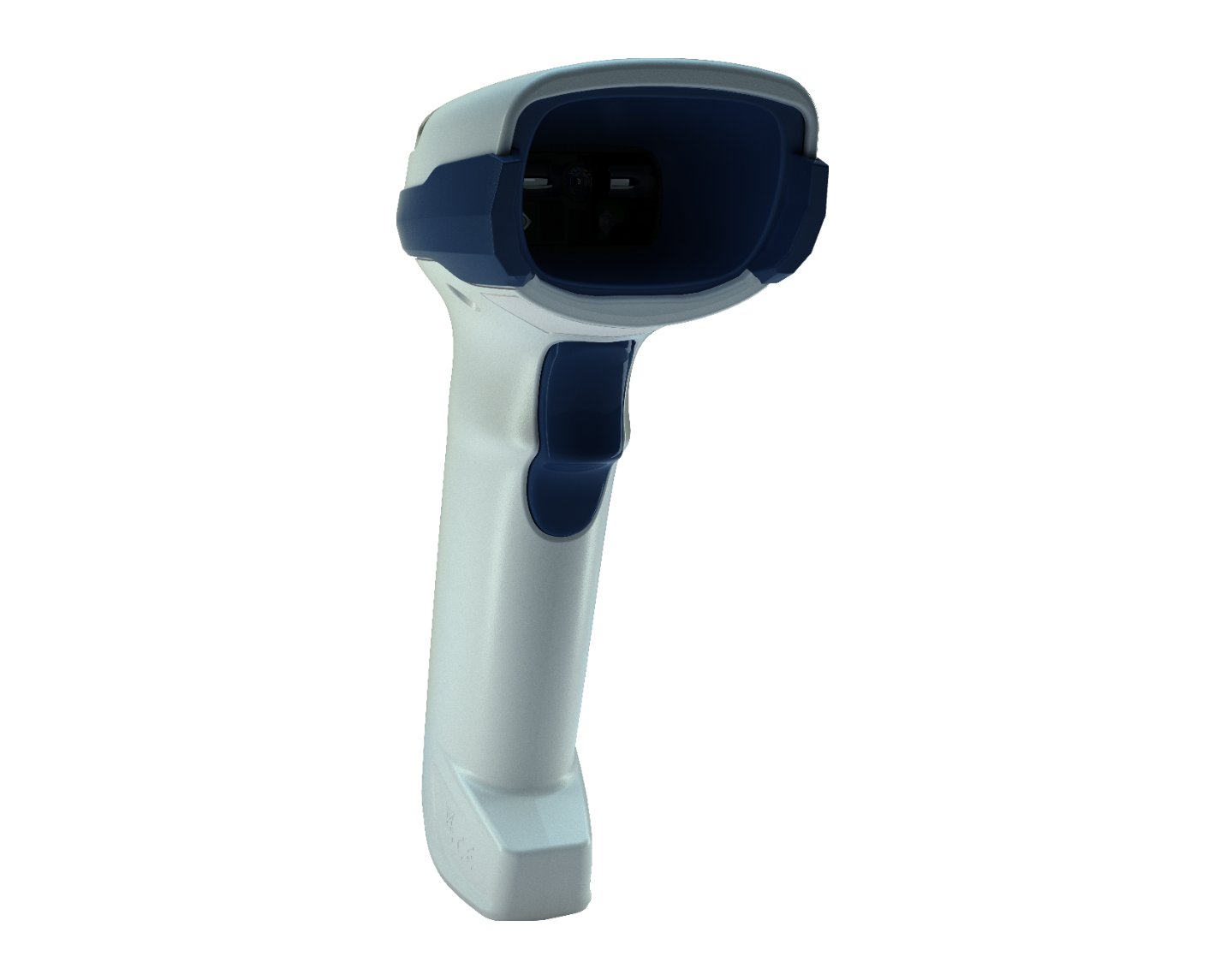

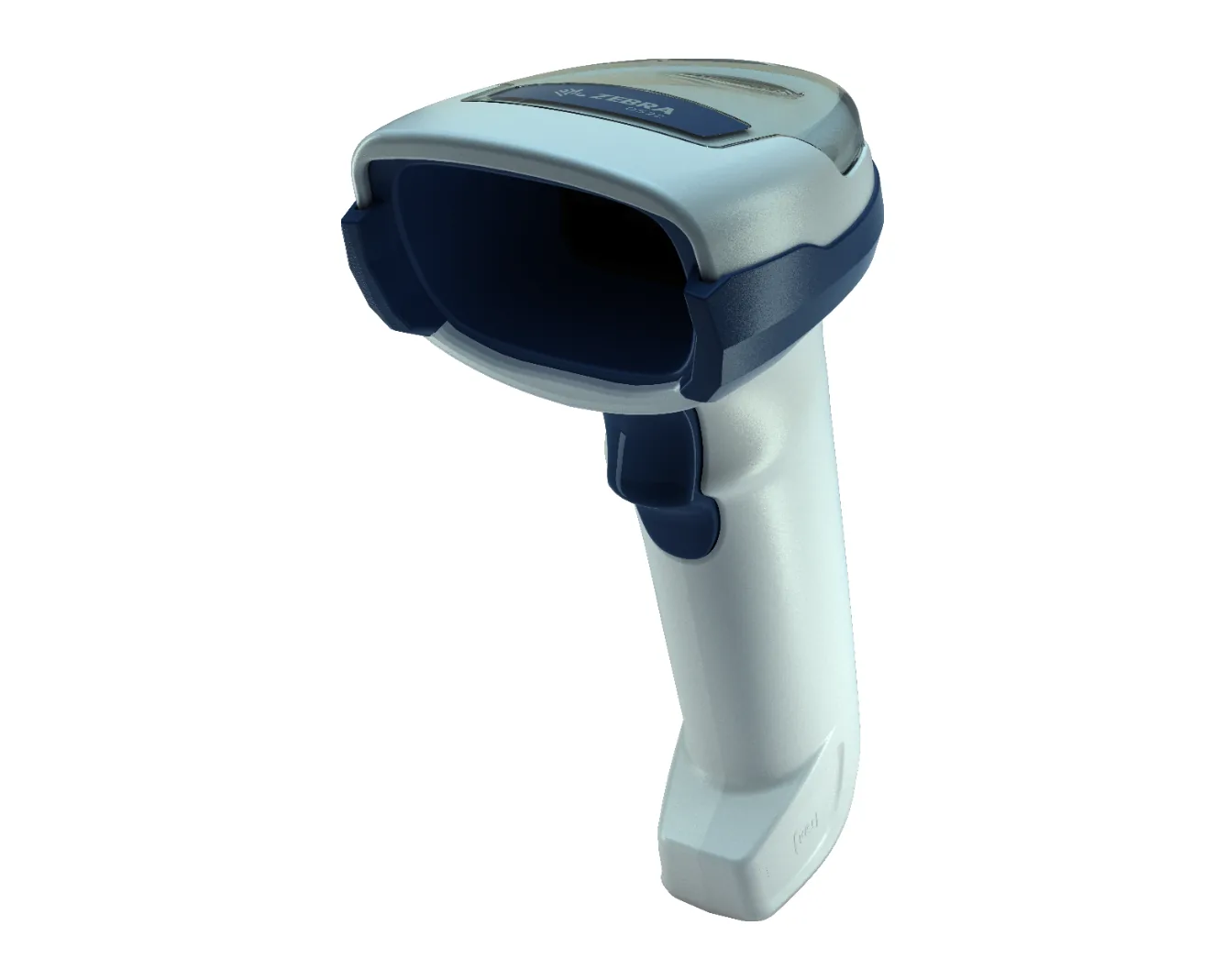

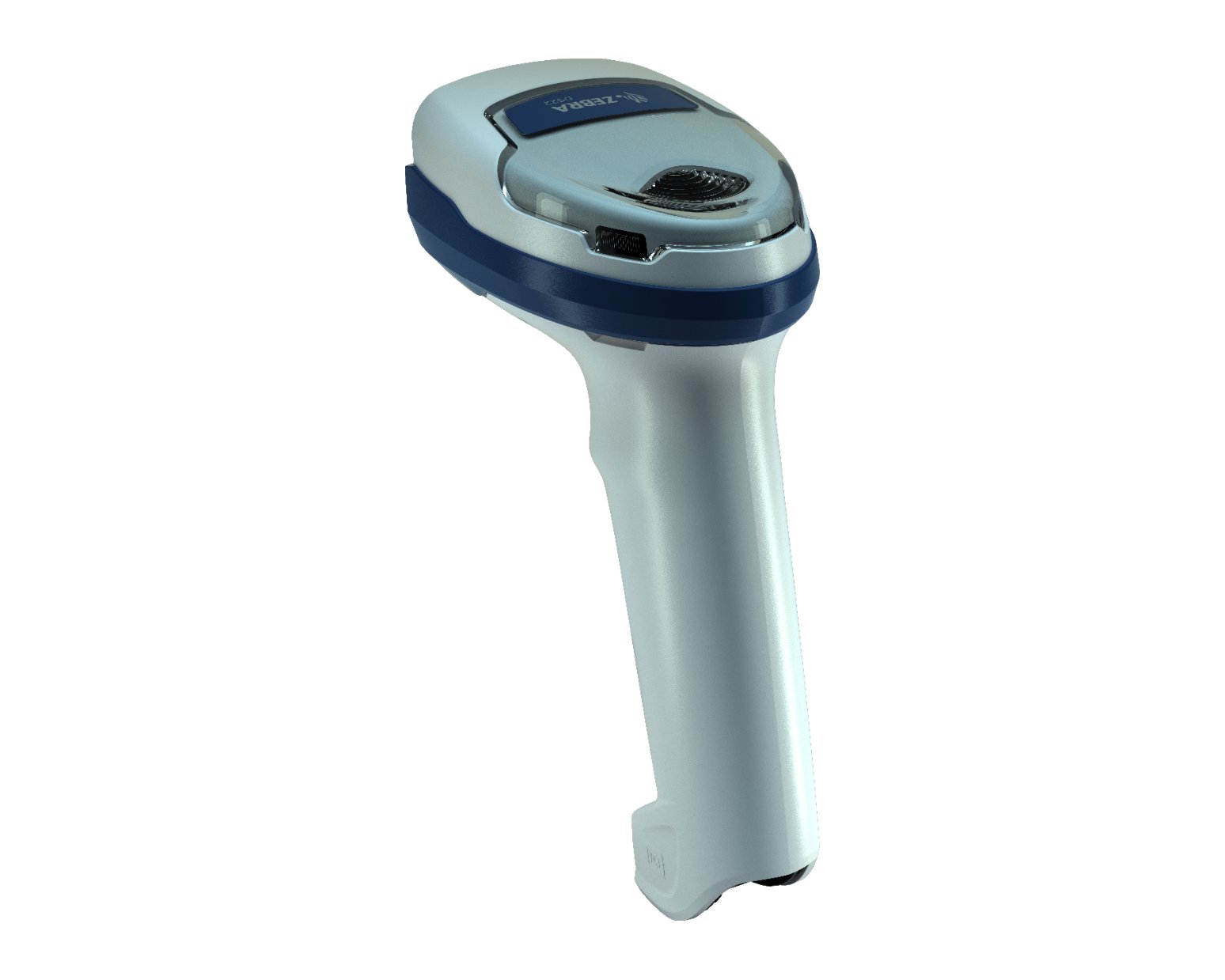

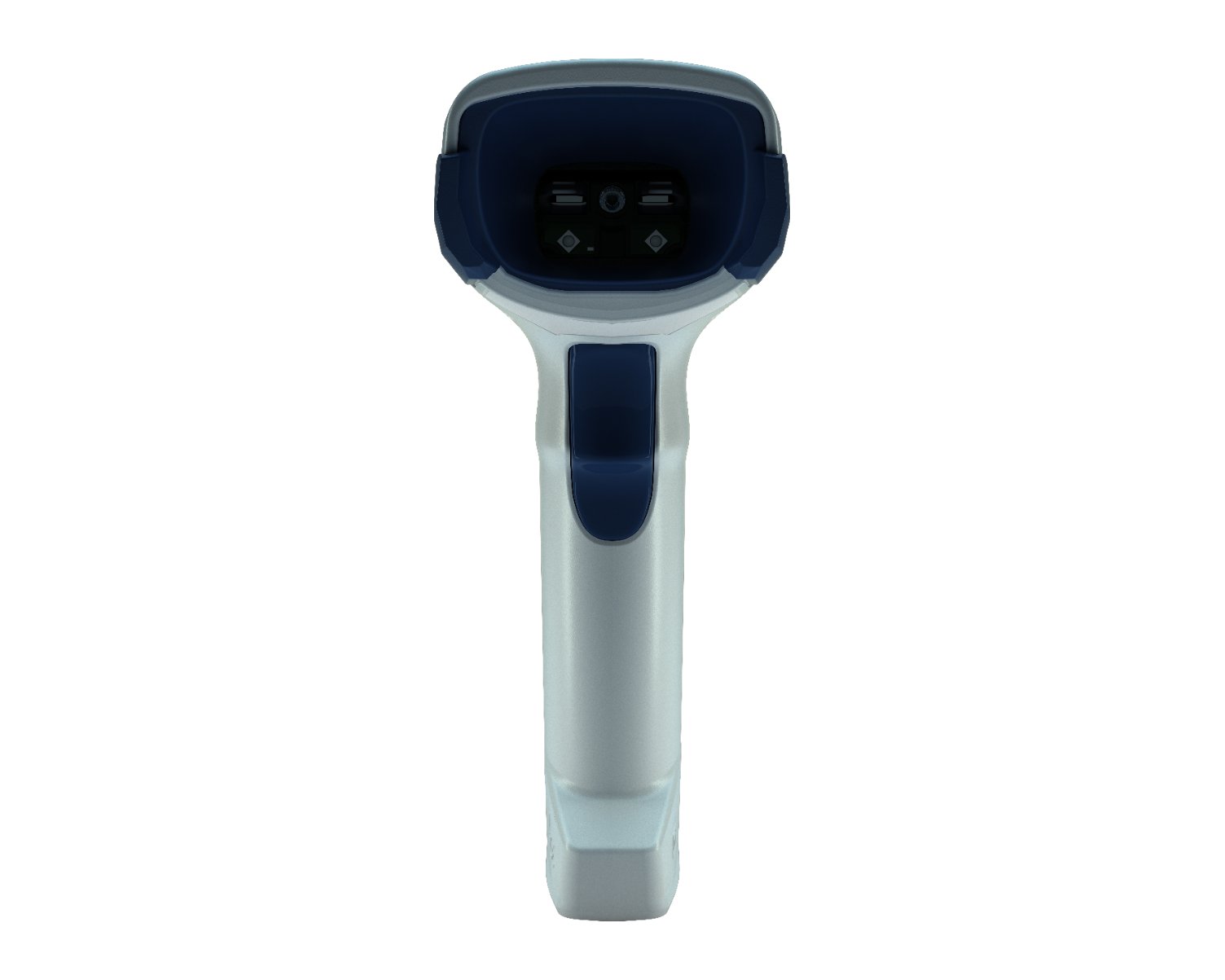

Zebra DS2278

Cordless Bluetooth version of the DS2200 imager with a 14 h battery and presentation cradle

Scanning technology2D
ConnectionWireless
IP ratingIP52

Model: DS2278
Brand: Zebra

Zebra DS2278 is the cordless Bluetooth barcode scanner of the DS2200 series. 640x480 px 2D imager, 2400 mAh Li-Ion battery for a 14 h shift and a presentation cradle. An HC version is available.

On order

Delivered within one week of payment.

from 2 520 MDL Price incl. VAT

The price is set individually: send a request and we will prepare a quote.

Request a quote Call

BrochuresSpec sheet (RU) RU Spec sheet (EN) EN

01Description

Zebra DS2278 is the cordless Bluetooth version of the DS2200 imager. It comes with a presentation cradle and suits those who want no cable at the checkout or in the warehouse.

Key features

2D imager with a 640x480 px sensor
Bluetooth 4.0 BLE, USB through the cable or cradle
2400 mAh Li-Ion battery: 14 h shift, 110,000 scans per charge
UPC 13 mil from 1.27 to 36.8 cm, Code 39 5 mil from 0.5 to 15.2 cm
1.5 m drop rating, IP52 protection, 214 g
DS2278-HC version with a white housing

Where it fits

A fit for retail, HoReCa, logistics, light manufacturing and the public sector. The HC version is for medical areas.

Request a quote for Zebra DS2278.

02Specifications

Barcode capture

Scanning technology	2D
Scan engine	2D imager, 640x480 px
Reading range	UPC 13 mil: 1.27-36.8 cm; Code 39 5 mil: 0.5-15.2 cm
DPM (direct part marking)	—

Connectivity

Connection	Wireless
Interfaces	USB (cable/cradle), Bluetooth 4.0 BLE

Durability and power

Healthcare (HC): disinfectant-ready housing	✓
IP rating	IP52
Drop resistance	1.5 m
Operating temperature	0...50 °C
Battery	Li-Ion 2400 mAh; 14 h shift; 110,000 scans per charge
Weight	214 g
